Tesla Valve - CFD Simulation CFD Software Tutorial

1. Introduction

In the following tutorial you will learn how to:

  • Create periodic boundary conditions with non-conforming boundary mesh
  • Apply pressure jump between periodic boundaries
  • Calculate mass flow rate through a boundary

We will investigate mass flow rates obtained in two configurations of the infinite tesla valve. We will create a two-dimensional model with periodic boundary conditions.

In the first part of the tutorial, we will calculate flow in the blocking direction of the valve. The flow will be forced by a prescribed pressure difference between the inlet and the outlet boundary of the periodic domain segment.

In the second part, we will simulate flow in the opposite direction, by changing the sign of the applied pressure difference. Finally, we will compare the results and the efficiency of the two configurations.

2. Download SimFlow

SimFlow is a general purpose CFD Software

To follow this tutorial, you will need SimFlow free version, you may download it via the following link:
Download SimFlow

3. Create Case

Open SimFlow and create a new case named tesla valve

  1. Click New
  2. Provide name tesla valve
  3. Click Create to open a new case
simflow-launcher

4. Import Geometry - Tesla Valve

Firstly we need to Download GeometryTesla_valve. The geometry will be imported in the same units as it was exported to the STEP format.

  1. Click Import Geometry
  2. Select geometry file tesla_valve.step
  3. Click Open
Tesl Valve 03 Import Geometry

5. Geometry - Tesla Valve

After importing geometry, it will appear in the 3D window.

  1. Click Fit View to fit geometry in the view
Tesl Valve 04 Geometry

6. Translate Geometry - Tesla Valve (I)

The geometry is a three-dimensional volume. However, in this tutorial, we will work on a two-dimensional case. To prepare this kind of mesh, we will use the Plate (2D plane) base mesh, which should cut through the 3D volume. Therefore, we need to adjust the location of the geometry so that its center will be located on the XY plane.

  1. Expand the Options list for tesla valve
    (you can also right-click on geometry name)
  2. Select Translate
Tesl Valve 05 Geometry translate

7. Translate Geometry - Tesla Valve (II)

Now we have to specify coordinates for the translation.

  1. Set translation vector
    Translation Vector \({\sf [m]}\)00-2.5e-03
  2. Click Translate
Tesl Valve 06 Geometry translate2

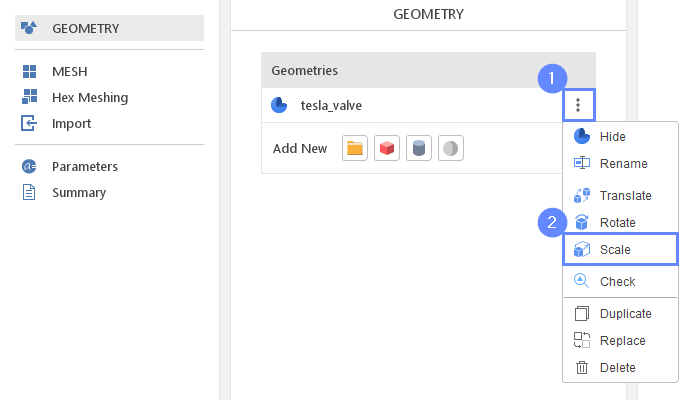

8. Preview Geometry

After the geometry is scaled we will not be able to see it in the 3D graphics panel. We can adjust the view by using the Fit View button.

  1. Select Fit View
Tesl Valve 09 Geometry view

9. Creating Face Groups (I)

In this fluid flow simulation, we are dealing with an internal flow problem. The imported geometry determines the bounds of the fluid domain. To inform the program where the boundaries of the inlet and outlet mesh should be created, we will use the Face Groups options. Face Groups can be created directly in the 3D graphics panel or from the Face Group geometry properties panel. In this tutorial, we will utilize the first approach.

  1. Select the inlet face by holding CTRL button and clicking on the geometry face in a 3D view. The selection should be marked in red
  2. Click on the Face Group button in the graphics context toolbar
  3. Press Esc key to clear the selection
Tesl Valve 10 Face group

10. Creating Face Groups (II)

Next, rotate the view in such a way that you will be able to see the second end of the geometry.

  1. Select the outlet face by holding CTRL button and clicking on the geometry face
  2. Click on the Face Group button in the graphics context toolbar
Tesl Valve 11 Face group2

11. Rename Face Groups

In the Geometry Panel we can find three Face Groups under the tesla_valve geometry. The first group, named default, contains all non-selected surfaces. These surfaces will constitute the walls of the valve. The two additional groups represent the inlet and outlet of the fluid domain. We will rename those groups to make the resulting boundary names more readable.

  1. Select tesla_valve geometry
  2. Expand Geometry Faces
  3. Change face groups names accordingly
    group_1 \(\rightarrow\) left
    group_2 \(\rightarrow\) right
Tesl Valve 12 Group rename

12. Meshing Parameters - Tesla Valve

In order to create the mesh, we need to specify geometries features used during the meshing process.

  1. Go to Hex Meshing panel
  2. Select the tesla_valve component
  3. Enable Mesh Geometry
  4. Enable Create Boundary Layer Mesh
  5. Set No. of Layers to 2
  6. Set First Layer Thickness to 0.5
    (by default first cell size value is the relative size, in this case, the program will generate a boundary layer with a height equal to half of the original near wall cell)
  7. Select all Face Groups for Boundary Layer Mesh
Tesl Valve 13 Hex Meshing

13. Base Mesh - Domain

We are going to create a mesh for a 2D fluid flow problem. The Plate base mesh is best suited for this purpose. This base mesh type will automatically take care of preparing appropriate boundaries for Z-direction.

  1. Go to Base tab
  2. Select the Plate as a Base Mesh Type
  3. Click on Autosize
  4. Define the number of divisions
    Division40080
Tesl Valve 14 Base mesh

14. Material Point

Material Point tells the meshing algorithm on which side of the geometry the mesh is to be retained. Since we are considering flow inside the mold we need to place the material point inside the geometry.

  1. Go to Point tab
  2. Specify location inside tesla_valve geometry
    Material Point0.0300

You can specify the point location from the 3D view. Hold the CTRL key and drag the arrows to the destination.

Tesl Valve 15 Material point

15. Start Meshing

Everything is now set up for meshing.

  1. Switch to Mesh tab
  2. Start the meshing process with Mesh button
Tesl Valve 16 Meshing

16. Check Mesh

After the meshing process is finished the mesh should appear in the graphics window.

  1. Set the XY orientation View XZ
  2. Click Fit View
Tesl Valve 17 Mesh

17. Boundary Coupling (I)

In this tutorial, we are simulating a valve consisting of an infinite number of segments, where the mesh represents only one segment. In this situation, fluid flow can be driven only by body forces or pressure difference between inlet and outlet (the same across all segments). We can assume, that the velocity field in each segment is the same along the whole valve. Therefore outlet from one segment will be an inlet to the next one, and the velocity profile from one boundary should be mapped onto the next one. This kind of constraint is usually called periodic boundary condition or periodic coupling . We can distinguish two main types of periodic coupling:

  • cyclic - all faces on one boundary match exactly the faces on the second boundary
  • cyclic AMI - couples pair of boundaries, where communication between boundaries is performed using arbitrary mesh interface (AMI) interpolation. Boundaries have to be conforming only in the sense of shape

During the meshing process, we have not enforced conformity of meshes on the left and right boundary. Therefore, we cannot assume that faces on the left boundary are exactly matching the faces on the right boundary. Therefore, in this case, we should use the cyclic AMI boundary coupling.

18. Boundary Coupling (II)

Now we will create AMI coupling between the left and the right side of the valve segment.

  1. Hold CTRL key and select both tesla_valve_left and tesla_valve_right boundaries
  2. Click the Cyclic AMI
Tesl Valve 19 Boundary Coupling

19. AMI Properties

  1. Click on coupled boundary to display properties
  2. Select Translational transform
  3. Set the vector between left and right boundary
    Separation Vector0.1500
Tesl Valve 20 Boundary Coupling2

20. Select Solver - SIMPLE

We want to analyze incompressible turbulent flow inside the tesla valve. For this purpose, we will use the SIMPLE (simpleFoam) solver.

  1. Go to SETUP panel
  2. Select Steady State type
  3. Select Incompressible flow filter
  4. Select SIMPLE (simpleFoam) solver
  5. Select solver
Tesl Valve 21 Select Solver

21. Turbulence

We are going to use the standard \(k{-}\omega \; SST\) model to handle turbulence.

  1. Go to Turbulence panel
  2. Select RANS modeling
  3. Select \(k{-}\omega \; SST\) model
Tesl Valve 22 Turbulence

22. Transport Properties - Water

As a fluid material, we will use water.

  1. Go to Transport Properties panel
  2. Open Material Database
  3. Pick up water from the list
  4. Click Apply

Selecting material from the Material Database will fill all inputs in the Transport Properties panel. At any time we will still be able to overwrite these values.

Tesl Valve 23 Transport properties

23. Solution - SIMPLE

We will also modify the solver configuration what will increase the stability of the computational process.

  1. Go to Solution panel
  2. Switch to the SIMPLE tab
  3. Increase the Non-Orthogonal Correctors to 5

This option usually improves stability and convergence but at an additional computational cost due to solving pressure equations multiple times.

Tesl Valve 24 Solu Simple

24. Solution - Residuals

We will decrease residual levels for pressure. We do not need to decrease the residual level for other variables because the pressure equation is usually the one converging last.

  1. Switch to the Residuals tab
  2. Change the pressure residual to
    p1e-05
Tesl Valve 25 Solu Residuals

25. Solution - Limits

Velocity Dumping can prevent the solver from diverging even if nonphysical velocity would appear during the iterations.

  1. Switch to the Limits tab
  2. Check the Velocity Damping
Tesl Valve 26 Solu Limits

26. Boundary Conditions

We are simulating one segment of a periodic geometry, where values at the inlet and outlet of the domain are bounded by the cyclic constraint. In this case, we can not force fluid flow by using a standard approach, but we will use pressure jump instead. This boundary condition will force constant pressure difference between coupled boundaries.

  1. Go to Boundary Conditions panel
  2. Select tesla_valve_left boundary
  3. Set the pressure type and jump value accordingly
    p TypeFixed Jump AMI
    p Jump \({\sf [m^2 / s^2]}\)-100

If, after changing boundary condition type to Fixed Jump AMI you do not see the Jump input field then move to the tesla_valve_right boundary, where this input will appear. In this case, you will have to apply the pressure difference with an opposite sign. The Jump value input appears only on master boundary, which is the first boundary in the coupling.

Tesl Valve 27 Boundary Conditions

27. Monitors - Sampling (I)

During calculation, we can observe intermediate results on a section plane. To add sampling data on a plane we need to define plane properties and also select fields that will be sampled. Note that runtime post-processing can only be defined before starting calculations and can not be changed later on.

  1. Go to Monitors panel
  2. Switch to Sampling tab
  3. Select Create Slice
  4. Set slice plane location
    Point \({\sf [m]}\)0.105e-04
Tesl Valve 28 Sampling Slice1

28. Monitors - Sampling (II)

Additionally, to specifying section plane geometry we need to choose which results should be sampled on the surface.

  1. Expand Fields list
  2. Select pressure p , velocity U and turbulence kinetic energy k
Tesl Valve 29 Sampling Slice2

29. Run - Time Control

Finally, we can start our computation.

  1. Go to RUN panel
  2. Set the maximum Number of Iteration to 10000
Tesl Valve 30 RUN 1 1

30. Run - CPU

To speed up the calculation process, take advantage of parallel computing and increase the number of CPUs based on your PC’s capability. The free version allows you to use only one processor (serial mode). To get the full version, you can use the contact form to Request 30-day Trial

Estimated computation time for serial mode: {time}

  1. Switch to CPU tab
  2. Click Run Simulation button
run cpu serial

31. Discretization - Convection

After preliminary calculation, we will continue with a more accurate algorithm. Change velocity discretization to the Linear Upwind scheme to minimize numerical diffusion affecting the results of the simulation.

  1. Go to the Discretization panel
  2. Switch to Convection tab
  3. Click on Upwind to extend the list
  4. Change scheme to Linear Upwind
Tesl Valve 31 Discretization LU 1

32. Run - Continue Simulation

Move back to Run panel and continue calculation. Note we did not remove the previous result but we use them as a starting point for computation with a higher-order scheme.

  1. Go to RUN panel
  2. Click Continue Simulation button
Tesl Valve 32 RUN 1 2

33. Residuals

When the calculation is finished we should see a similar residual plot. Note that we can see how residual values get up when we have changed the convection scheme. This is due to the fact that different numerical scheme results in slightly different discrete equations which do not match results from previous calculations.

Tesl Valve 33 Residuals 1

34. Slice - Velocity Field

Slices tab appears next to the Residuals tab. Under this tab, we can preview results on the defined section plane.

  1. Change tab to Slices
  2. Select the velocity U
  3. Click Adjust range to data
Tesl Valve 34 Slice 1

35. Calculate - Mass Flow Rate

Finally, we will calculate what is the mass flow rate in the flow blocking direction.

  1. Go to Calculate panel
  2. Switch to Boundary tab
  3. Select tesla_valve_left boundary
  4. Choose the \(\varphi\) variable
  5. Click the Calculate button
  6. Read the phi value from the console

Results will be displayed in the console. The \(\phi\)φ variable is the flux through mesh faces. In the case of incompressible solvers, the flux is volumetric instead of mass flux. To obtain mass flow rate we have to multiply results by reference density.

Tesl Valve 35 Calculate Mass 2

36. Reset Result

In the next simulation, we will invert flow direction and once again compute the flow rate forced by the same pressure gradient.

  1. Go back to RUN panel
  2. Click Reset Calculation button. This will remove current results and allow to change setting for the second simulation
Tesl Valve 36 Reset

37. Reset Discretization Setup

We need to change the higher-order Linear Upwind scheme back to Upwind . This scheme will be again used for initial calculation since it is less accurate but more stable.

  1. Go to Discretization panel
  2. Switch to Convection tab
  3. Expand the scheme list for U
  4. Change scheme to Upwind
Tesl Valve 37 Discretization U 2

38. Boundary Conditions -Inverse Pressure Gradient

In the second run, we will investigate the results with fluid moving in the opposite direction.

  1. Go to Boundary Conditions panel
  2. Select the tesla_valve_left boundary
  3. Set the Jump value to 100
Tesl Valve 38 Boundary Condition 2

39. Run - Second Simulation

We leave the rest of the configuration unchanged. Now we can start the new calculation.

  1. Go to RUN panel
  2. Click Run Simulation button
Tesl Valve 39 RUN 2 1

40. Discretization - Convection (2nd Case)

Again, after preliminary calculation, we will continue with a more accurate algorithm.

  1. Go to Discretization panel
  2. Switch to Convection tab
  3. Expand the scheme list for U
  4. Change scheme to Linear Upwind
Tesl Valve 40 Discretization LU 2

41. Run - Continue Calculation (2nd Case)

Move back to Run panel and continue calculation.

  1. Go to RUN panel
  2. Click Continue Simulation button
Tesl Valve 41 RUN 2 2

42. Residuals (2nd Case)

When the calculation is finished we should see a similar residual plot.

  1. Switch to Residuals tab
Tesl Valve 42 Residuals 2

43. Slice - Velocity Field (2nd Case)

As previously change tab to Slices and display velocity field. Compare results with previous velocity field. We can see that the velocity level is much higher under the same pressure gradient, which indicates that this configuration results in much smaller resistance.

  1. Change tab to Slices
  2. Select the velocity U
  3. Click Adjust range to data
  4. Display the latest results by clicking End button
Tesl Valve 43 Slice 2

44. Calculate - Mass Flow Rate (2nd Case)

Finally, we will calculate the mass flow rate for the second simulation and compare the results.

  1. Go to Calculate panel
  2. Switch to Boundary tab
  3. Select tesla_valve_left boundary
  4. Choose the \(\varphi\) variable
  5. Click the Calculate button
  6. Read the phi value from the console

The sign of mass flow rate defines the direction of the flow. This time the value is positive because fluid flows outside the domain. We are interested only in absolute values. Check the ratio of mass flow rates between the two simulations:

\(Ratio = \frac{0.000115}{1.606e-005} \approx 7.2\)

As we can see, the 7.2 times more fluid flowing through the valve when we apply a pressure difference in the forward direction. Note that this simulation is in 2D, which means that the valve is infinitely wide and does not account the resistance from the side walls.

Tesl Valve 44 Calculate Mass 2

45. Advanced Postprocessing with ParaView

This concludes the tutorial, covering all the aspects we intended to showcase. To create a finely tuned presentation of the results, you may take advantage of the seamless integration with ParaView. You can easily open simulation results in ParaView with a single click from SimFlow.

In ParaView, you can perform typical and advanced postprocessing tasks such as displaying streamlines, contour plots, vector fields, line or time plots, and calculating volume or surface integrals.

To familiarize yourself with the ParaView capabilities, it’s worth checking out our video tutorial, Paraview CFD Tutorial - Advanced Postprocessing in ParaView, in which we demonstrate some of the most commonly used post-processing techniques.
